| MAXIMUM ENVIROMENT TEMPERATURE TO FUNCTION | -35...70 °C |
| PLACEMENT MODE | σταθερό |
| DEPTH (mm) | 71.5 mm |
| PROTOTYPES | IEC 60947-5-1 |
| NOMINATIVE FUNCTION VOLTAGE | 250 V AC |
| CLIMATOLOGICAL CONDITIONS | 2 |
| SHORT DEVICE NAME | iPB |
| PLACEMENT SUPPORT | Συμμετρική ράγα DIN 35 mm |
| PRODUCT LINE | iPB |
| HEIGHT | 82 mm |
| CABLE STRIPPING LENGTH | 9 mm |
| ΗΛΕΚΤΡΙΚΗ ΑΝΤΟΧΗ | AC-22: 30000 cycles AC 50/60 Hz |
| DISTANCE 9mm | 2 |
| PRODUCT OR PART TYPE | μπουτόν |
| CONFIGURATION AND CONTACT TYPE | 1 NO + 1 NC |
| NOMINATIVE FUNCTION CURRENT | 20 A |
| TIGHTENING TORQUE | 1 N.m |
| WIDTH | 18 mm |
| RELATED HUMIDITY | 95 % ( 55 °C ) |
| LINE | Acti 9 |
| CHECK TYPE | 1 μπουτόν γκρι |

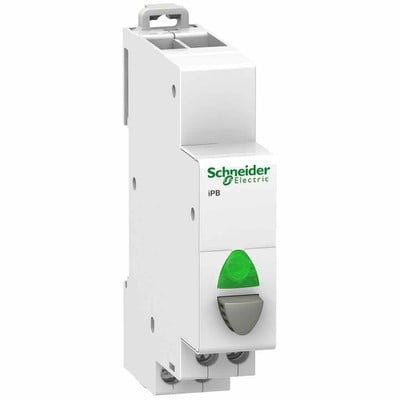

| PRODUCT NAME | Acti 9 iPB |
| COMPATIBILITY CODE | iPB |
| BRIDGE BAR COMPATIBILITY | πάνω : Clario |
| CONNECTIONS-TIPS | staggered tunnel terminal 2 καλώδιο(α) 2.5 mm² εύκαμπτο με κος |
| COLOUR 1 | White |
| SURROUNDING AIR TEMPERATURE FOR STORAGE | -40...80 °C |
| MARKET PART | Offices / Stores |
